Variant 7

MADE IN THE USA

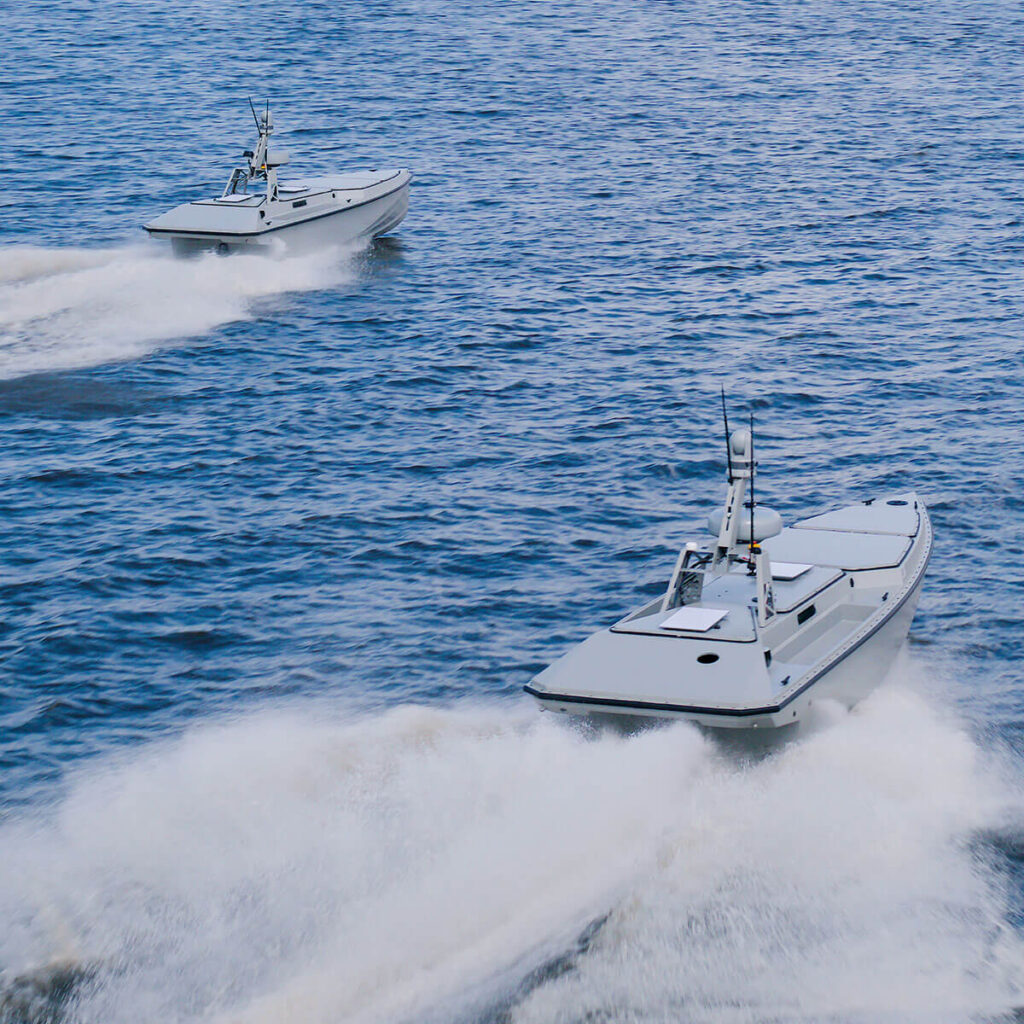

Introducing the Variant 7, an advanced unmanned surface vessel designed for extended range, endurance, and increased payload capacity. Built on operational insights and powered by Blue Ops’ open MOSA architecture with proprietary semi-autonomous command and control, the Variant 7 supports mission-adaptable operations, including integrated UAV launch and recovery. The Variant 7 enhances flexibility for U.S. and allied forces across complex maritime environments.

BENEFITS
Designed for extended range, increased payload capacity, and integrated UAV launch, the Variant 7 delivers enhanced mission flexibility to support maritime operations including strike, force protection, and coastal security in complex environments.
The Variant 7 integrates seamlessly with Red Cat’s suite of ISR drone systems, supporting multi-domain coordination and networked autonomous operations.
For naval commanders seeking powerful, proven, and scalable maritime weapons systems, the Variant 7 offers an unmatched solution—designed for the fight, and ready to win it.

SPECIFICATIONS

Maximum Operational Range: up to 800 nm (standard payload)
Endurance (Unmanned): 60+ hr continuous operation
Max Velocity (Combat Config): at least 39+ kn
Sustained Operational Velocity: 23 kn
Sea State Operational Rating: SS4 (marginal), SS3 (optimal)
Mission Payload Capacity: up to 650 kg (1,433 lbs)
Sensor Package: Day/Night EO Targeting System with Enhanced Stabilization | Dual redundant imaging systems | Acoustic detection and classification suite
Length Overall (LOA): 7.2m
Beam: 2.1m

Command & Control: Multi-redundant encrypted C2 architecture with dual SatCom | uplinks, COMSEC-compliant
Height (keel to Highest Point): 1.5m
Displacement: (Light/Full): 1300/3400Kg
Propulsion Rating: 270Hp
Fuel Type: Diesel
Fuel Capacity: 1200L
Propulsion System: Hybrid Jet/Inboard Drive System
Hull Construction: Advanced Composite (HDPE/Fiberglass)
